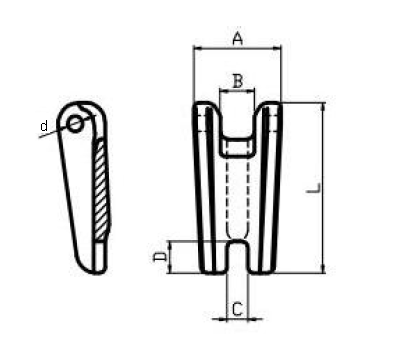

Tabela trava para gancho clévis grau 8
| Código de Referência | Dimensões (mm) | |||||
| A | B | C | D | L | d | |
| TGC8 - 6 | 23,0 | 9,0 | 5,0 | 8,0 | 44,0 | 4,2 |
| TGC8 - 7/8 | 25,7 | 10,0 | 6,0 | 10,0 | 52,0 | 4,2 |
| TGC8 - 10 | 28,0 | 12,0 | 8,0 | 13,0 | 63,0 | 4,2 |
| TGC8 - 13 | 36,0 | 14,0 | 8,0 | 16,0 | 78,0 | 4,2 |
| TGC8 - 16 | 36,0 | 14,0 | 8,0 | 14,0 | 85,0 | 4,2 |
| TGC8 - 20 | 42,0 | 18,0 | 9,0 | 16,0 | 95,0 | 4,2 |
| TGC8 - 22 | 50,0 | 19,5 | 11,0 | 19,0 | 113,5 | 6,2 |
| TGC8 - 26 | 53,5 | 26,0 | 15,0 | 18,0 | 145,0 | 6,2 |
| TGC8 - 32 | 64,0 | 31,0 | 18,0 | 20,0 | 175,0 | 6,2 |
