Tabela Mosquetão Tipo Oval Galvanizado
Coeficiente de Segurança 4:1

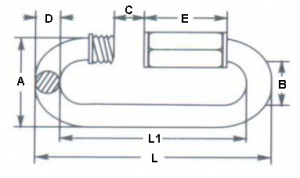

| CÓDIGO REFERÊNCIA | DIMENSÕES (MM) | CARGA DE TRABALHO (KG) | PESO UNIT (KG) | ||||||
| A | B | C | D | L | L1 | E | |||
| MOG-4 | 19,5 | 11,5 | 5,5 | 4,0 | 39,5 | 31,5 | 12,5 | 226 | 0,010 |
| MOG-5 | 23,0 | 13,0 | 6,5 | 5,0 | 48,5 | 35,5 | 16,0 | 350 | 0,020 |
| MOG-6 | 26,5 | 14,5 | 7,5 | 6,0 | 57,0 | 45,0 | 19,0 | 400 | 0,030 |
| MOG-7 | 30,0 | 16,0 | 8,5 | 7,0 | 66,0 | 52,0 | 21,5 | 600 | 0,050 |
| MOG-8 | 33,5 | 17,5 | 10,5 | 8,0 | 74,0 | 58,0 | 24,0 | 800 | 0,070 |
| MOG-9 | 37,0 | 19,0 | 11,0 | 9,0 | 80,0 | 62,0 | 26,0 | 895 | 0,100 |
| MOG-10 | 40,5 | 20,5 | 12,0 | 10,0 | 89,0 | 69,0 | 29,0 | 997 | 0,130 |
| MOG-12 | 47,5 | 23,5 | 15,0 | 12,0 | 104,5 | 80,5 | 33,0 | 1133 | 0,220 |
