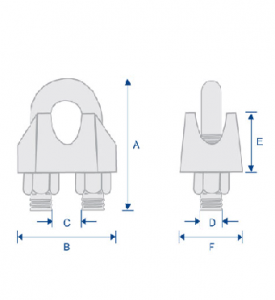

| REF. | DIÂMETRO DO CABO | DIMENSÕES (MM) | QUANT. MÍNIMA | ESPAÇ. MÍNIMO | TORQUE | PESO POR PEÇA |
| Pol | A | B | C | D | E | F | UND. | MM | N.m | Kgs |
| CL-02 | 1/16" | 19 | 18 | 5 | 3 | 9 | 10 | 3 | 10 | 2,0 | 0,004 |
| CL-03 | 1/8″ | 22 | 20 | 5 | 4 | 9 | 10 | 3 | 19 | 2,0 | 0,009 |
| CL-05 | 3/16″ | 26 | 23 | 7 | 5 | 10 | 11 | 3 | 28 | 2,0
| 0,013 |
| CL-06 | ¼″ | 30 | 25 | 9 | 5 | 11 | 12 | 3 | 38 | 3,5 | 0,018 |
| CL-08 | 5/16″ | 37 | 28 | 10 | 6 | 14 | 14 | 4 | 48 | 6,0 | 0,030 |
| CL-10 | 3/8″ | 45 | 33 | 12 | 8 | 17 | 18 | 4 | 57 | 9,0 | 0,062 |
| CL-13 | ½″ | 57 | 42 | 15 | 10 | 21 | 23 | 4 | 76 | 33,0 | 0,115 |
| CL-14 | 9/16" | 49 | 39 | 13 | 8 | 20 | 21 | 4 | 85
| 49,0 | 0,140 |
| CL-16 | 5/8″ | 66 | 49 | 17 | 12 | 25 | 26 | 4 | 101 | 49,0 | 0,190 |
| CL-19 | ¾″ | 72 | 54 | 21 | 12 | 30 | 30 | 5 | 114 | 68,0 | 0,235 |
| CL-22 | 7/8″ | 80 | 61 | 23 | 14 | 34 | 34 | 5 | 133 | 107,0 | 0,350 |
| CL-25 | 1″ | 90 | 66 | 28 | 14 | 36 | 36 | 5 | 152 | 147,0 | 0,400 |
| CL-29 | 1.1/8″ | 106 | 74 | 33 | 15 | 43 | 37 | 6 | 171 | 212,0 | 0,610 |
| CL-32 | 1.1/4″ | 110 | 80 | 36 | 15 | 50 | 40 | 6 | 190
| 296,0 | 0,720 |
| CL-38 | 1.1/2″ | 125 | 87 | 43 | 15 | 54 | 43 | 6 | 228 | 363,0 | 0,872 |
